Differences between lobe pumps

There are many differences between lobe pumps and gear pumps: 1. Volume: Due to its compact design, the lobe lobe pump requires a small footprint. No additional space is required to service the pump. Standard flange, diameter can be adjuste...

Stainless steel 316 Rotary Lobe Pump Chocolate Molasses transfer pump 316L Rotary Lobe Pump Lobe Pump for Chocolate Molasses SUS316 Rotary Lobe Pump

Stainless steel 316 Rotary Lobe Pump

  • item no.:

  • lead time:

    Customer Date

  • product orgin:

    china saiken pumps

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description
Brief Introduction:
Stainless steel 316 Rotary Lobe Pump are used in a variety of industries including food, beverage, pharmaceutical, cosmetics, pulp and paper, coating and painting, oil and gas, daily chemical, and biotechnology. They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance and good clean-in-place and steam-in-place (CIP/SIP) characteristics.

Rotary lobe pumps can handle slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure, too, so output is relatively constant and continuous.

Technical parameters:
Material                                : SS304/SS316/SS316L
Max. Flow                             : 300m3/h
Max.pressure                       : 12bar/ 174PSI
Max.working temperature   : 150 C / 302 F
Suggested working speed: 20-600rpm
Rotor Type                            : single leave, 2-leaves, 3-leaves
Mechanical seal                   :Carbide alloy (Standard), fluororubber O-ring
Shaft seal type                     :Single mechanical seal/Double mechanical seal with cooling system
Voltage                                  :110V, 220V, 380V, 575V etc.
Driving                                   :Fixed speed geared motor, TEFC geared motor with inverter controlled
Connections                         :Clamp, Thread, Flange
Connection standard          :DIN, SMS, 3A, RJT, ISO/IDF
Operated                               :Electic
Packaging Details               :Plywood case, fumigated wooden case
Delivery details                    :Usually within 20 days after receiving T/T down payment
(Price will depend on different model pump, different configuration. Detailed pls kindly contact us.)

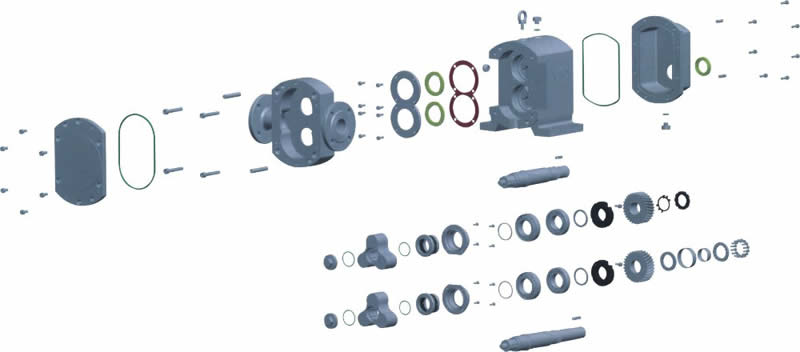

Breakdown drawing:

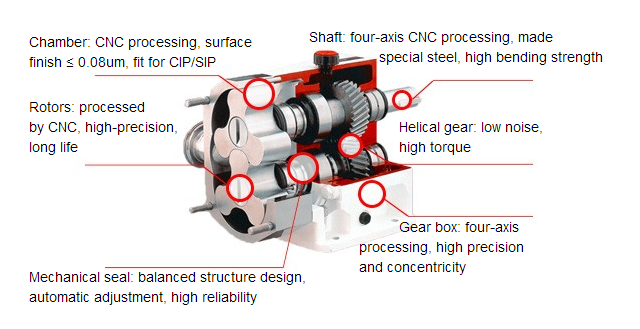

Main features
