Differences between lobe pumps

There are many differences between lobe pumps and gear pumps: 1. Volume: Due to its compact design, the lobe lobe pump requires a small footprint. No additional space is required to service the pump. Standard flange, diameter can be adjuste...

Rotary Lobe Pumps for Chocolate

  • item no.:

    LP3A-18

  • lead time:

    Customer Date

  • product orgin:

    CHINA

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description

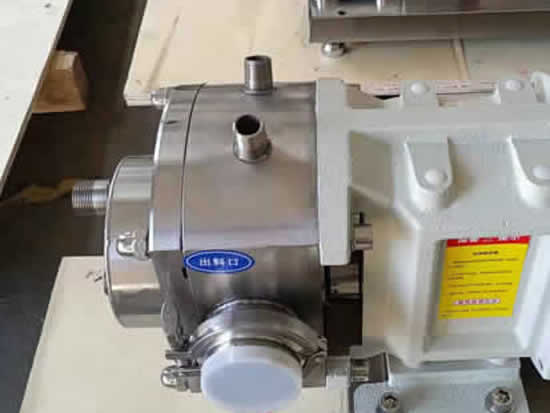

Lobe pumps with heating jacket on the pump front cover, designed for products that require temperature control such as sugars, chocolates. You can engage in hot water or steam to preserve the heat, without coagulation, successful pumping.
The Saiken Rotary Lobe Pump is available in 10 different sizes. Shaft seal options include single and double mechanical as well as lip seals. Multi-foot for vertical or horizontal mounting. Heating/cooling systems for front cover. Connections from 25 mm to 150 mm.

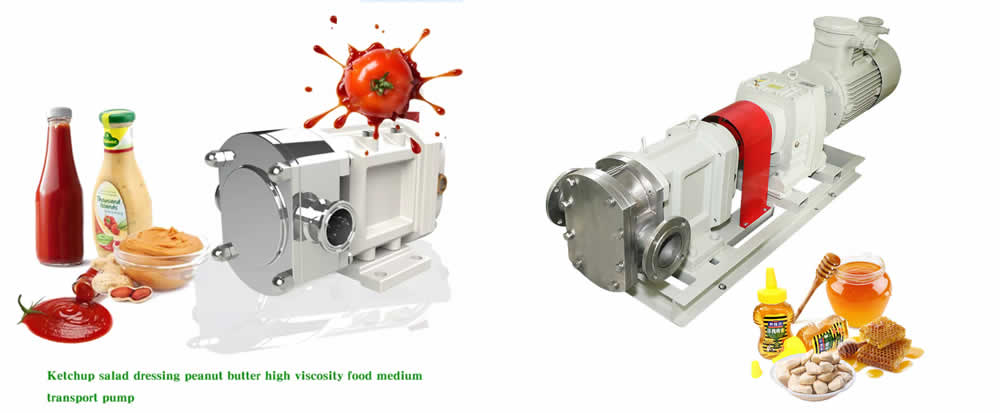

Saiken food grade Lobe pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.

Technical specifications:

◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization

Product Name: LP Series Hygienic Lobe Pumps
Material Science: SS304 / SS316L
sealing material: EPDM (Standard, FDA Approval)
Maximum flow: 2~1110GPM
Maximum pressure: 4~10bar
Maximum permissible fluid temperature: 100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply: 110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type: Fast clamping, flange, thread, SMS, barb, square port
Motor power: 1~30kw
Entry/Exit location: Horizontal or vertical
Maximum viscosity: 1×1000000CST
Optional criteria: DIN,SMS,3A,RJT,ISO / IDF
Scope of application: Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter: 1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
Rotor type: Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material: EPDM (standard, FDA approved)
Sealing options: PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details: Plywood box or custom. Or according to customer

Technological parameter:

Model LITER/100REV SIZE
mm		 PRESSURE RATING
BAR		 MAXIMUM SPEED
RPM		 POWER
kw
LP-6 6 25 10 960 0.75
LP-9 9 32 10 960 1.1
LP-18 18 40 10 960 1.5
LP-36 36 50 10 720 2.2
LP-60 60 65 10 720 4
LP-105 105 80 10 600 7.5
LP-180 180 100 10 600 11
LP-250 250 125 10 600 15
LP-325 325 150 10 400 18.5
LP-525 525 150 10 400 22
LP-700 700 200 10 400 37

tags :
