Stainless steel gear pump parts lubricated

2020-07-22

The lubrication of all parts in the gear pump of the stainless steel gear pump is automatically achieved by the delivery medium when the SS gear pump is working.

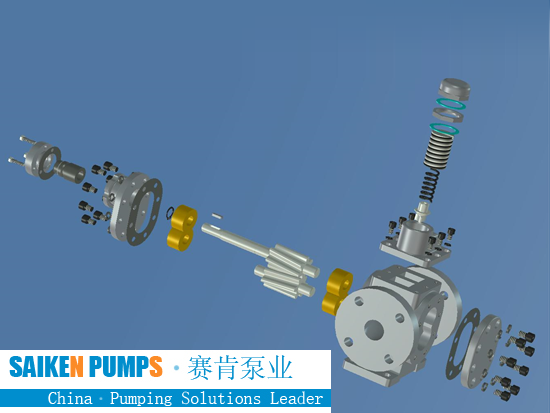

   Stainless steel gear oil pump is mainly composed of driving gear, driven gear, pump body, pump cover and safety valve. The sealed space formed by the pump body, pump cover and gear is the working room of the gear pump. The axles of the two gears are respectively installed in the bearing holes on the two pump covers, and the driving gear shaft extends out of the pump body and is driven to rotate by the motor. When the gear pump is working, the driving wheel rotates with the motor and drives the driven wheel to rotate. When the meshing teeth on one side of the suction chamber are gradually separated, the volume of the suction chamber increases and the pressure decreases, and the liquid in the suction pipe is sucked into the pump; the suction liquid is pushed into the discharge chamber by the gear in the tooth groove in two ways. After the liquid enters the discharge chamber, because the gear teeth of the two gears are continuously meshing, the liquid is squeezed and enters the discharge pipe from the discharge chamber. The driving gear and the driven gear keep rotating, and the stainless steel gear pump can continuously suck and discharge liquid. The stainless steel gear pump body is equipped with a safety valve. When the discharge pressure exceeds the specified pressure, the conveying liquid can automatically open the safety valve to return the high-pressure liquid to the suction pipe.
