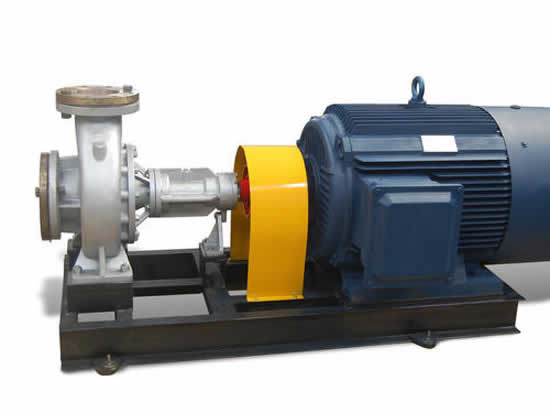

The quality of the installation of the high-temperature heat-conducting oil pump has a very important impact on the smooth operation and service life of the pump, so the installation work must be carried out carefully, and must not be rash.
2. The installation height, length, and pipe diameter of the suction pipe of the high-temperature heat-conducting oil pump should meet the calculated values, and strive to be short and reduce unnecessary losses (such as elbows).
3. There should be a pipe rack for the suction and discharge pipes, and the pump is not allowed to bear the load of the pipes.
4. The installation site should be wide enough to facilitate maintenance and good heat dissipation.
5. Installation order of high temperature SS heat conduction oil pump:
(1) Place the unit on the foundation buried with anchor bolts, and place a pair of pads between the base and the foundation for correct use.
(2) Loosen the coupling, place it on the pump shaft and base with a spirit level, and adjust the wedge pad to make the unit level. After aligning, properly tighten the anchor bolts to prevent walking.
(3) Fill the base and anchor bolt holes with concrete.
(4) After the concrete is solidified, check the base and anchor bolts for defects or looseness. After passing the inspection, tighten the anchor bolts and recheck the level of the pump.
(5) Correct the coaxiality of the pump shaft and the motor shaft. The deviation on the outer circle of the coupling is allowed to be 0.1 mm. The gap between the planes of the two couplings should be 2 to 3 mm. , The difference between the maximum and minimum gap should not exceed 0.3 mm.
(6) After connecting the pipeline and determining the direction of rotation of the prime mover, connect the coupling and check the coaxiality of the circle again.
(7) Make final inspection after the actual commissioning of the unit for 3 to 4 hours. If there is no defect, the installation is deemed to be qualified.
(8) In order to prevent debris from falling into the machine during installation, all holes of the unit should be covered.
(9) When cleaning the inlet and outlet pipes before starting the high-temperature heat-conducting oil pump, a filter must be added to the inlet section of the pump to prevent debris from entering the pump
