High Temperature Resistant Centrifugal Pump Installer

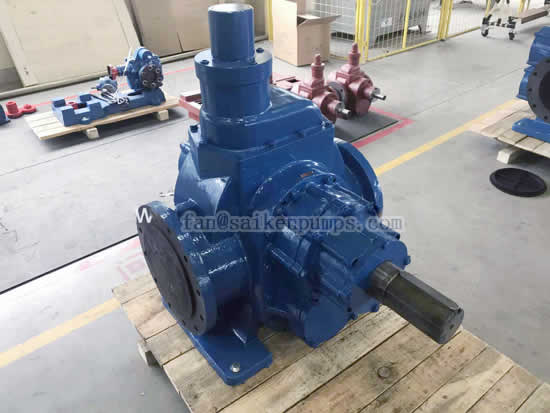

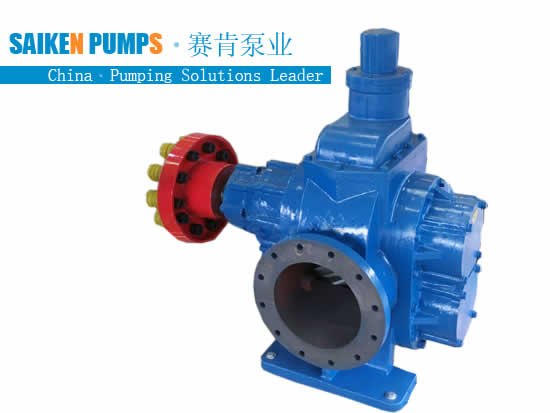

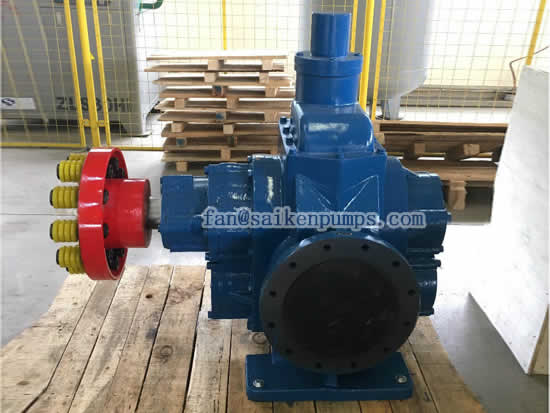

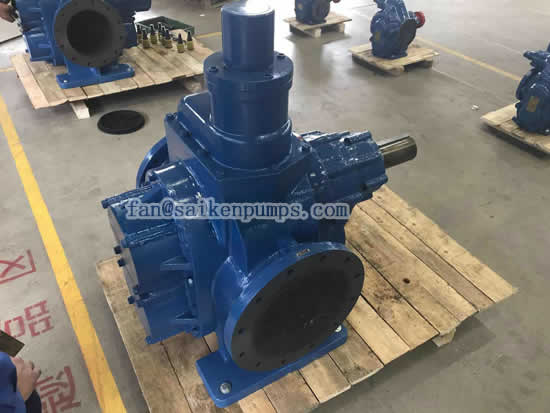

8 Inch Gear Oil Pumps - KCB 1800

  • item no.:

    KCB1800
  • lead time:

    Customer Date
  • product orgin:

    china saiken pumps
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
KCB 1800 Oil Gear Pump Specifications:

     Model        Capacity
       (L/min)
     Pressure
         (Bar)
     Speed
     (rpm)
     Caliber
       (inch)
     Power
     (kw)
         Efficiency
  KCB 1800  1800 (112 m³/h)          6      989         8 "        55             44%
Packing details    1100mm X 660mm X 1120mm for bare shaft pump, with export standard wooden case



KCB Gear Oil Pump Model:
* Large capacity range, up to 570 m³/h.
* MODEL: KCB 18.3,KCB 33.3,KCB 55,KCB83.3,KCB 135,KCB 200,KCB 300,KCB 483.3,KCB 633, KCB 960,KCB 1200,KCB 1600,KCB 2500,KCB 3800,KCB 5400,KCB 9600.
* Pump Body Material : Cast iron / stainless steel(304/316/316L)
* Gear Material : Steel, copper, stainless steel.
* Temperature: less than 180 degrees.(more than 180 degrees need customized)
* Reliable and easy to Maintain
* Good self-priming function.
* Self-lubrication by the pumped liquid.
* With built-in relief valve.
* Screw port or flange port for connection.
* Explosion-proof motor optional.
