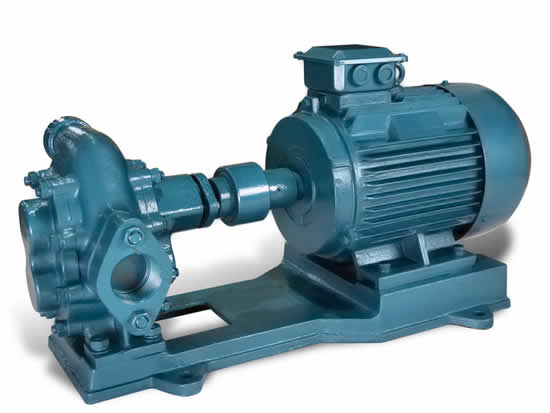

KCB gear pump is a rotary pump that relies on the change and movement of the working volume formed between the pump cylinder and the meshing gear to deliver liquid or pressurize it. Two enclosed spaces are composed of two gears, a pump body, and front and rear covers. When the gears rotate, the volume of the space on the side of the gear disengagement increases from small to form a vacuum to suck in liquid, and the volume of the space on the gear mesh side increases from large Small, and squeeze the liquid into the pipeline. The suction cavity and the discharge cavity are separated by the meshing line of the two gears. The pressure at the outlet of the gear oil pump depends on the resistance of the pump. KCB gear pump has self-priming, no need to inject liquid before starting the pump, simple and compact structure, easy to use and maintain. When the pump is automatically lubricated by the liquid delivered in daily work, it does not need to add additional lubricating oil and use the elastic coupling to transmit power, which can compensate for the small deviation caused by the installation, and play a buffering effect when it is subjected to hydraulic shock. KCB gear pump is composed of pump body, pump cover, gear, bearing sleeve and shaft end seal. The gears and shafts of the gear pump are all nitrided, which has high hardness and abrasiveness. The gears and shafts are installed in the sleeve together. The running parts in the gear pump are lubricated by the medium it transports. The four bearing sleeves in the pump are installed in the pump body, and the end face gap is automatically adjusted according to the working pressure, so the pressure of the pump is stable, the output flow pulsation is small, and the volume rate is high.
