  • description
IS/IR end suction centrifugal pump for irrigation

Designed in accordance with S2858 Interational Standard.
Back slide cover construction facilitated servce and repairing work.Rotor may be easily pul out without having to disturb suction and discharge pipes Soft packing for shaft sealing. Flexible spacer coupling.

Materials of Construction  Performance Dat
Casing & Cover:  SUS/ductile iron  Flow Range: 6.3~ 4
Shaft:  Sealing  Impeller:  Carbon steel  Packing or mechanical seal  Ductile cast iron, cast steel and St. steel  Head Range: 5~ 125 Suction Dia.: 50 ~ 20 Pump Speed: 1450/29

Materials of Construction
Casing& Cover:cast/ductile iron
Shaft: Carbon steel
Impeller:Ductile cast iron, cast steel and St. stee
Sealing:Packing or mechanical seal
Shaft Sleeve: Cast iron
Seal Ring:Cast iron

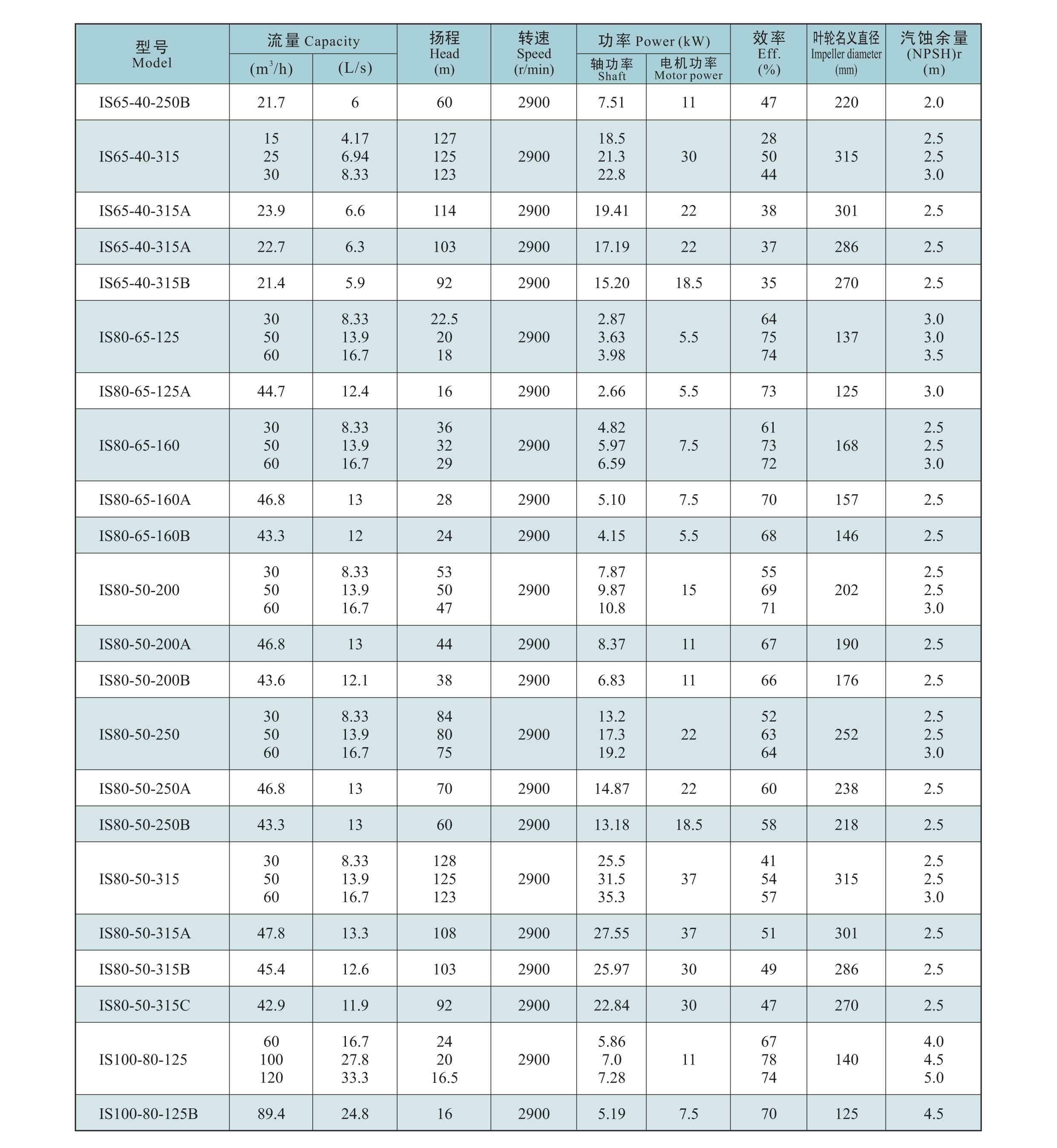

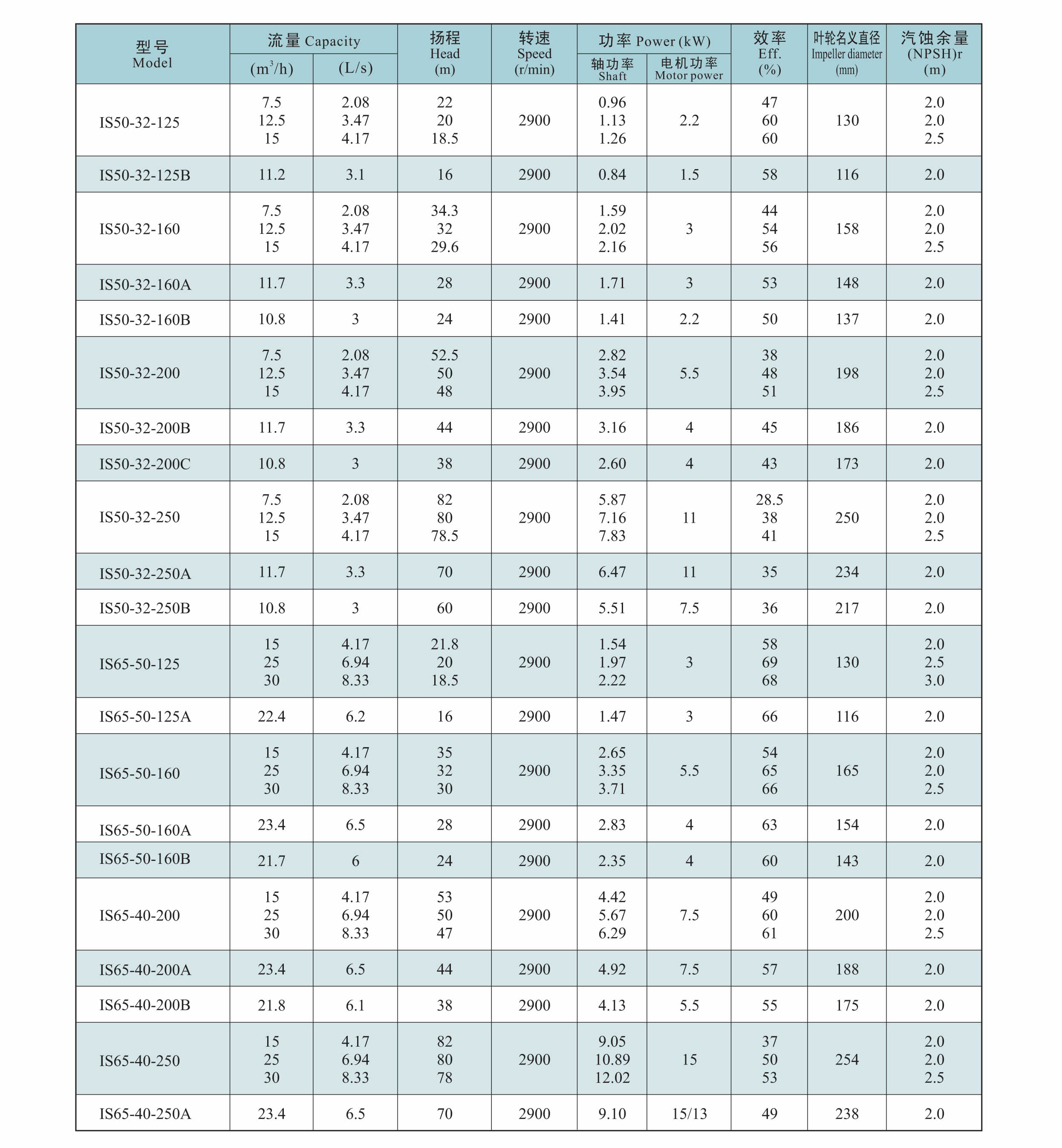

Performance Data
Flow Range: 6.~400m3/hr
Head Range: ~125m
Suction Dia.: 50~200
Pump Speed: 1450/2900 rpm
Fluid Temp.:upto8℃

Model Nomenclature
e.g.IS80-65-160A
 IS -  Single Stage End Suction
        Centrifugal Pump
 80 -  Suction Dia. (mm)
65 - Discharge Dia. (mm
160 - Impeller Dia. DN(mm)

Variations:

A - Impeller



Configuration

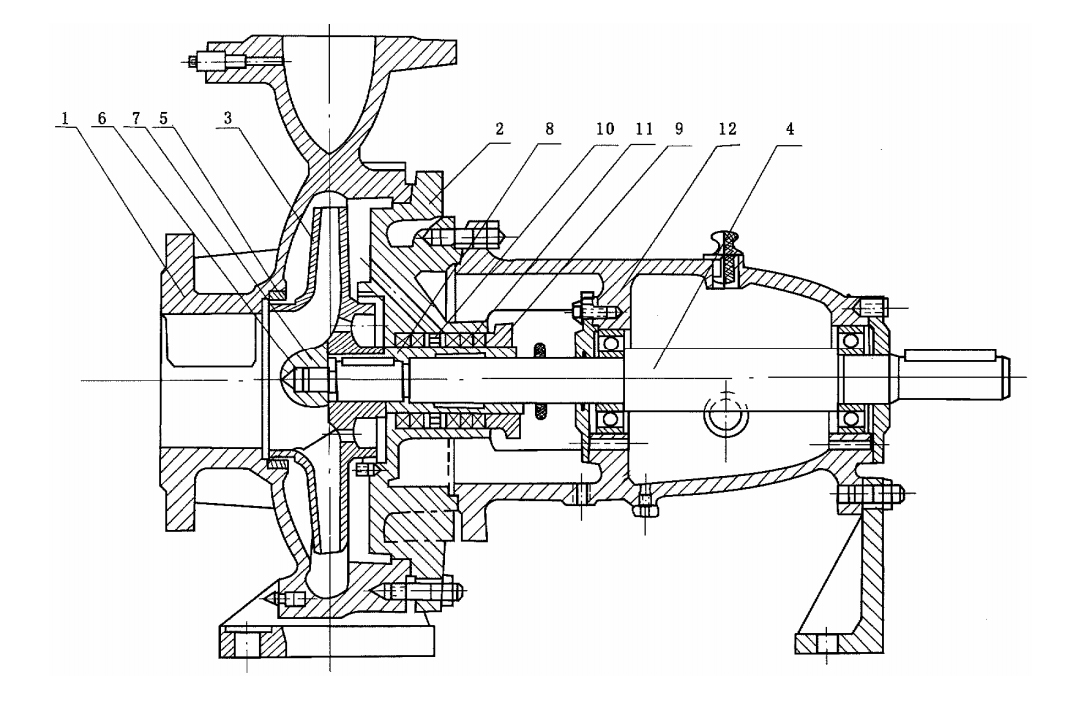

Drawing
IS end suction centrifugal pump

1. Pump casing
2. Pump Cover
3. Impeller
4. Shaft
5. Wear Ring
6. Impeller Cap
7. Braking Pad
8. Shaft Sleeve
9. Packing Gland
10. Seal Cage
11. Packing
12. Cantilever Bearing Assembly

IS end suction centrifugal pump for irrigationIS end suction centrifugal pump for irrigation

For more parameters, please email and contact me
