Stainless Steel Vane Pump

item no.:
lead time:
Customer Date
product orgin:
china saiken pumps
shipping port:
Tianjin China
payment:
L/C Or T/T
color:
Customer Color

contact now

description

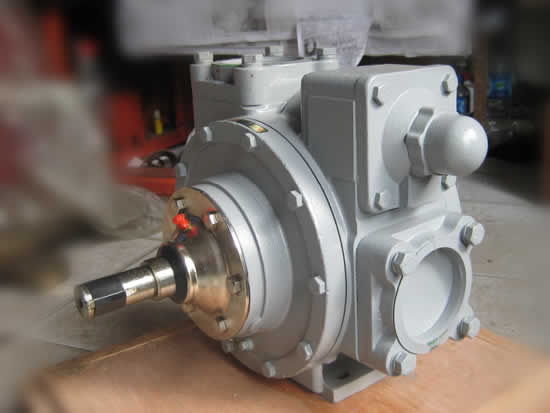

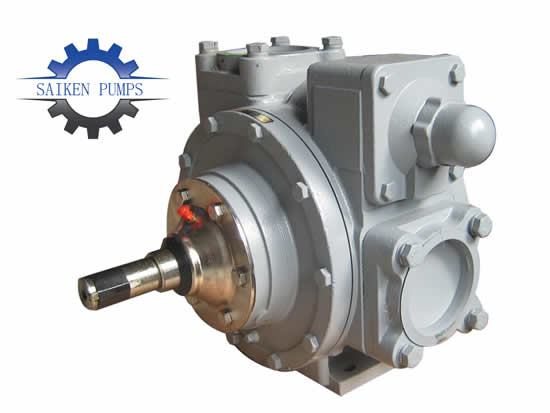

Vane Pump / Stainless Steel Vane Pump / self priming rotary vane pump

YB series Self-priming rotary vane pump with internal by-passvalve.The pumps use a rotor with sliding vanes to draw the liquid. Thematerial of construction is nodular iron with sliding vanes built in aspecial self lubricating material. Due to its efficiency, the pumpscan handle viscous and also volatile liquids and require less horsepower than other equivalent pumps. The pumps arecapable of higher flow-rates at lower number ofrevolutions than other designs.

Advantage

•Durable pumps for fast and quiet operation.

•Sliding vane design provides sustainedperformanceand trouble freeoperation, high reliability.

•Adjustable relief valve protects pump from excessive pressure.

•T-type strainers are available to protect pumpingsystem fromdamage caused by welding slag and other matter in the piping andtanks.

Maximum Operating Limit rotary vane pump
Model	NominalFlowrate		Rated Speed	Viscosity		Differential Pressure		Working Pressure		Temperature		Power
Model	GPM	LPM	RPM	SSU	Cp	PSI	Bar	PSI	Bar	0F	℃	HP	KW
YB-50	80	300	640	20,000	4,250	125	8.6	175	12.1	300	149	3	2.2
YB-65	157	594	640	20,000	4,250	125	8.6	175	12.1	300	149	5	4
YB-80	270	1,022	640	20,000	4,250	125	8.6	175	12.1	300	149	10	7.5
YB-100	505	1900	500	20,000	4,250	125	8.6	175	12.1	300	149	25	18.5

Package Data for rotary vane pump
Model	YB-50			YB-65		YB-80		YB-100

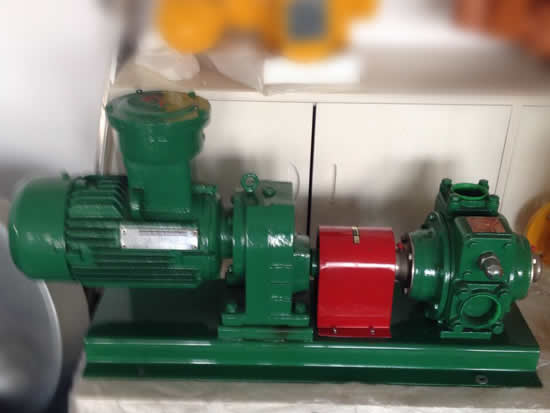

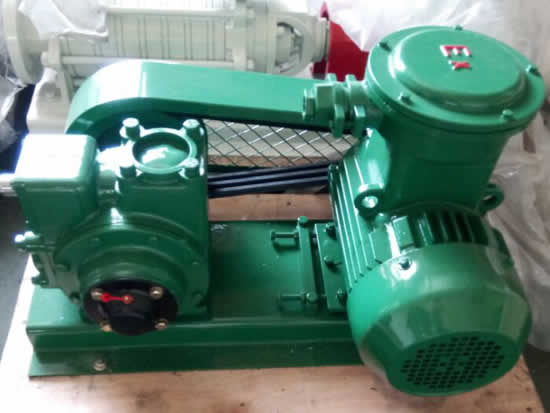

	Without Motor	W/Motor V-Belt Driven		Without Motor	W/Motor V-Belt Driven	Without Motor	W/Motor Coupling Driven	Without Motor

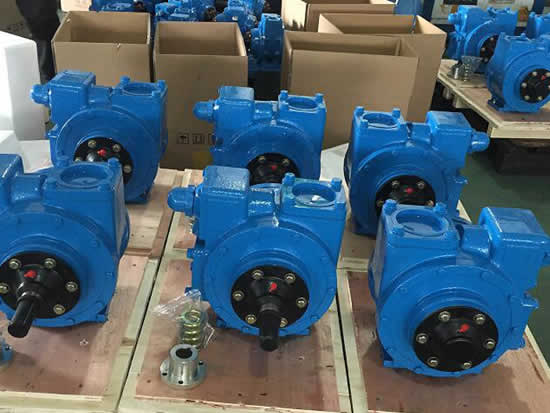

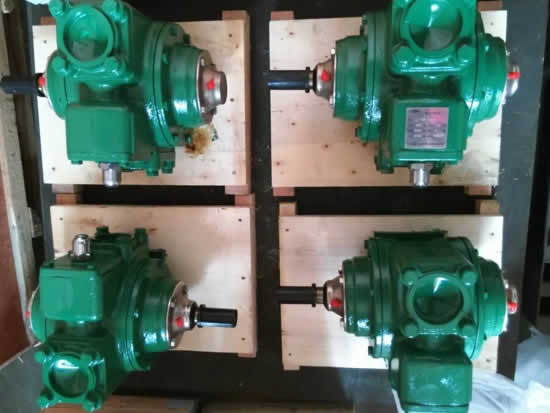

Packaging	1pc/ Wooden Case
Net Weight	31Kgs	86Kgs	40Kgs		92Kgs	64Kgs	185Kgs	160Kgs
Gross Weight	32Kgs	90Kgs	42.5Kgs		110Kgs	66Kgs	200Kgs	172Kgs
Size cm	44×33×39	80×55×59	44×33×32		119×55×59	45×40×38	130×47.5×76	54×49×58

Application:

Fuel oil delivery truck

Fleet refueling

Lube oil ;

Aviation refuelers ;

Transport of Petro Chemicals, gasoline, diesel,biofuels, solvents and any more.

Installation:

The pumps are widely used on mobile applications or fixed installations. With cardan shaftsor hydraulic motor the pumps can be installed on any kind of tank truck or they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids. mobile transfer units. Equipped with Teflon seals the pumps can also be used on a wide variety of solvents in the petrochemical industry.
