Gear pump selects revolutions according to medium

2020-07-06


The high-viscosity gear pump conveys high-viscosity materials such as high-viscosity resin, polyurethane, polymylon, polyethylene, etc.; it is particularly suitable for the conveyance of high-viscosity and consistency media; the pump head, pump housing, and sealed cavity can be equipped with thermal insulation jackets. According to the actual needs, select the location that needs insulation; the jacket and the pump body are cast into one body, and the insulation effect is good, which can avoid various problems caused by the welding jacket; when heating is needed: through various heat media such as hot steam, thermal oil, etc. Jacket.

 Generally, the viscosity of the conveyed medium is relatively high, so when selecting a high-viscosity gear pump, the rotation speed of the selected gear motor must be determined according to the pumped medium. The higher the viscosity, the lower the rotation speed of the selected pump. Ensure the use of high viscosity pumps. This series of high viscosity pumps are mainly composed of inner and outer rotors, shafts, pump bodies, front covers, brackets, seals, bearings, etc. There are two forms of sealing: mechanical seal and packing seal. For medium with high temperature, high viscosity and strong corrosiveness, packing seal is selected (for special requirements, magnetic drive, zero leakage structure can be selected).

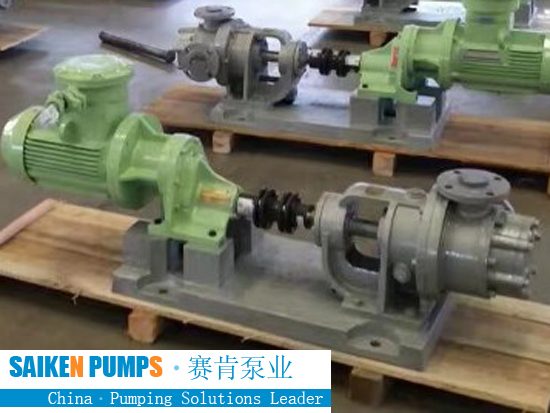

 When transporting easily crystallized materials, the front cover and the pump body can be designed with a thermal insulation jacket, which can be melted by steam during operation. The pump can be equipped with a safety valve. When the pump or pipeline system is overpressured, the safety valve opens to form an internal backflow to ensure the safety of the system. The pump device is composed of a pump, a motor and a base, and the transmission
High viscosity gear pump
