High Temperature Resistant Centrifugal Pump Installer
Home > Products > Asphalt & Bitumen Pump > Asphalt Gear Pumps >
new products
latest news

Differences between lobe pumps

There are many differences between lobe pumps and gear pumps: 1. Volume: Due to its compact design, the lobe lobe pump requires a small footprint. No additional space is required to service the pump. Standard flange, diameter can be adjuste...

High temperature Jacketed asphalt pump bitumen pump heat insulation gear pump bitumen pump asphalt pump heat insulation gear pump heat insulation bitumen pump asphalt pump

High temperature Heat preservation asphalt bitumen pump

  • item no.:

    HL38/0.6

  • lead time:

    Customer Date

  • product orgin:

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description

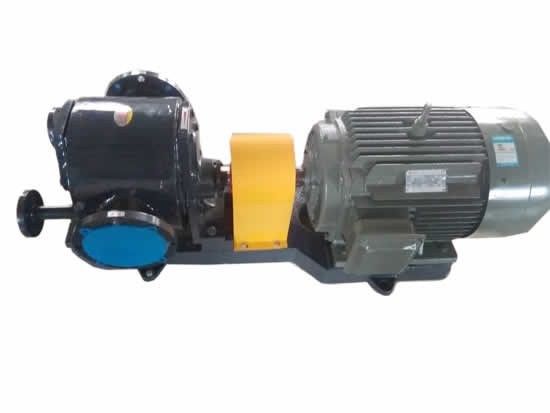

HL series heat insulation gear pump bitumen pump asphalt pump

     HL heat insulation bitumen / asphalt gear pump applies to delivery the medium without causticity, not including solid particle and has solidifiability under the normal temperature. It especially used for the condition that the medium required to keep heat in outdoor installation at cold region. The temperature of medium could be reach to 300 C. The viscosity is 5-1500 cSt.

Main Features
   The material of pump body is carbon steel. And the gears,axels and bushing adopt alloy steel.It applies to deliver non-corrosive heavy oil and bitumen without solid particles at temperature within 350℃.
Notes:
1.Pressure can be set according to customers requirement;
2.Adopt special alloy pump if it delivers the medium with more solid particles.

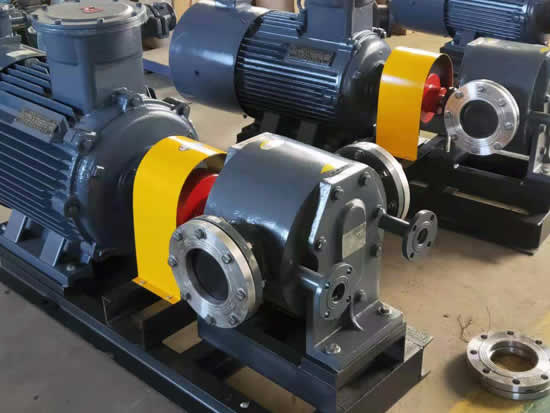

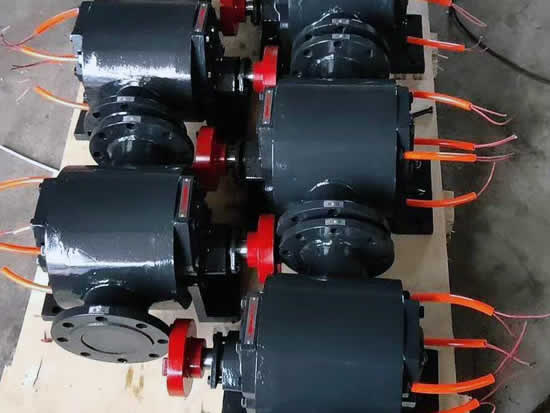

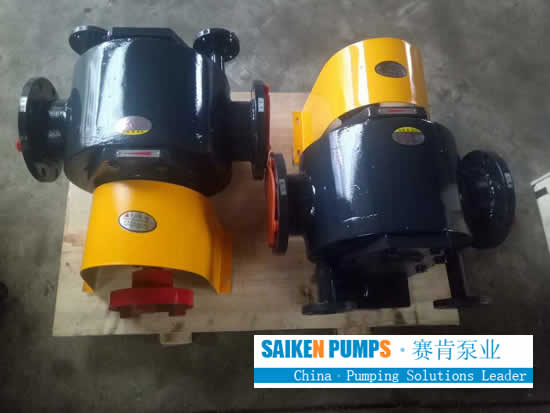

Detailed Images
1.There are two kinds of seal forms in the axle end,namely packing seal and mechanical seal.
2.The series of pumps don't have safy valve.If needs overload protection to motor when using,user should install return valve device.
3.The serues of pumps are resonable desine,compact stucture and good heat preservation effect.
4.The series of pumps have good self-priming performance,so there is no need to fill with liquid before users open each time.
5.Gear lubrication oil pump is on autimatic transmission fluid to achieve,so don't need day-to-day work of other lubricating.

Data table:

Model Flow
m³/h		 Pressure
(Mpa)
 		 Suction
(m)
 		 SIZE
(mm)		 motor power
（kw）
HL2-0.6 2 0.6 3 DN25 1.5-6
HL3-0.6 3 0.6 3 DN25 2.2-4
HL4-0.6 4 0.6 3 DN40 2.2-6
HL6-0.6 6 0.6 3 DN40 4-4
HL8-0.6 8 0.6 3 DN50 5.5-6
HL12-0.6 12 0.6 3 DN50 7.5-4
HL18-0.6 18 0.6 3 DN80 7.5-6
HL29-0.6 29 0.6 3 DN80 11-4
HL38-0.6 38 0.6 3 DN100 15-6
HL58-0.6 58 0.6 3 DN100 22-4
HL72-0.6 72 0.6 3 DN150 37-8
HL95-0.6 95 0.6 3 DN150 45-6
HL108-0.6 108 0.6 3 DN200 55-8
HL150-0.6 150 0.6 3 DN200 75-6
