High quality micro stainless steel gear pump

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

    CHINA SAIKEN PUMPS
  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description

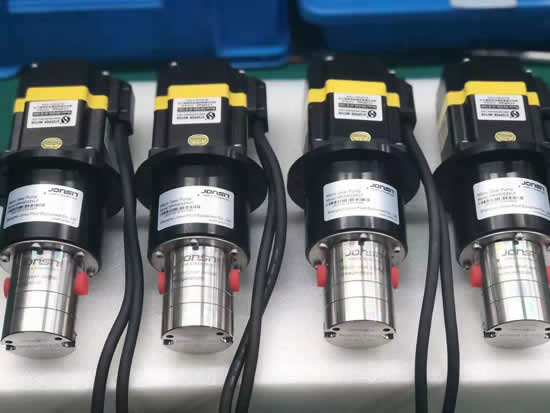

Miniature precision magnetic gear metering pumps:

For the industrial production process to provide a stable fluid delivery solution:
MICRO PUMP miniature gear pump is especially suitable for micro-conveying system, automatic feeding system, sampling equipment (including vacuum environment sampling), laboratory equipment, small cooling system, casting machinery, packaging machinery, disinfection cleaning system, drug filling system, chemical Metering system, small test / pilot plant, etc. need small flow, high pressure, stable flow, accurate measurement of the occasion.

【Miniature gear pump main features:】

1、smooth and pulseless precise delivery
forward displacement pump, through gear to provide continuous accurate fluid delivery
2、no leakage
Magnetic drive and static O-ring seal to ensure that the pump medium and external isolation
3、high differential pressure
can also be achieved for low viscosity liquid high pressure delivery
4、precision motor and precision control
DC-servo motor integrated PLC microcomputer control, OEM industrial products supporting.

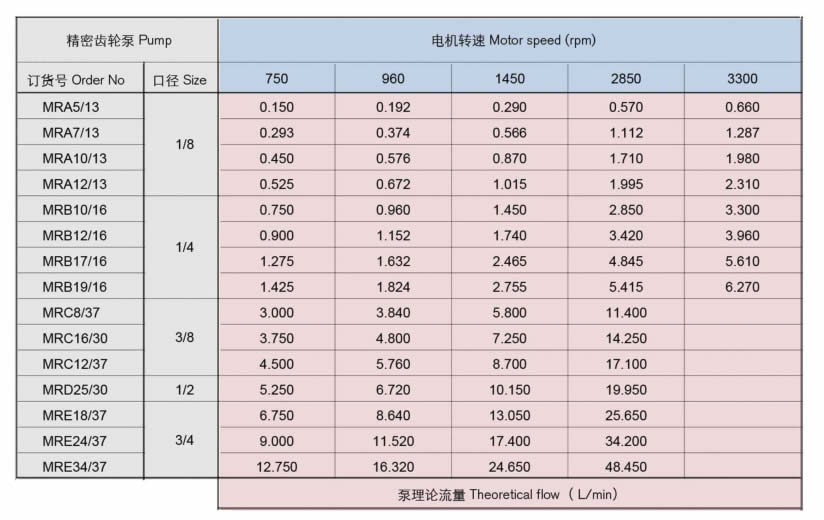

Note: The above flow data is based on water as the medium, the pump outlet without pressure measurement, due to the gap between the gears will have a gap loss, the actual flow changes will be based on media viscosity, pressure and motor speed will change, experimental data Tell us: medium viscosity, the export pressure unchanged, as long as the motor speed is stable, the flow is stable, the flow depends on the size of the motor output speed, we have a professional selection of software and tens of thousands of pumps application experience, you can Develop professional solutions.

【Performance parameters】

Flow range:0.01-48.5 L/min
outlet pressure:0-17.2bar(Depends on viscosity)
inlet pressure:-0.9 to 10bar
maximum temperature:-20°C-180℃
Viscosity range:0-3000cps
largest proportion:1.8

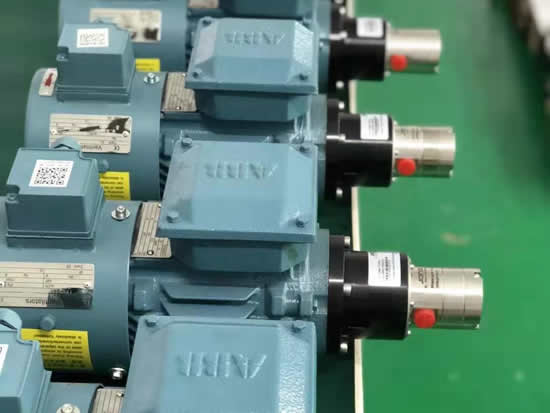

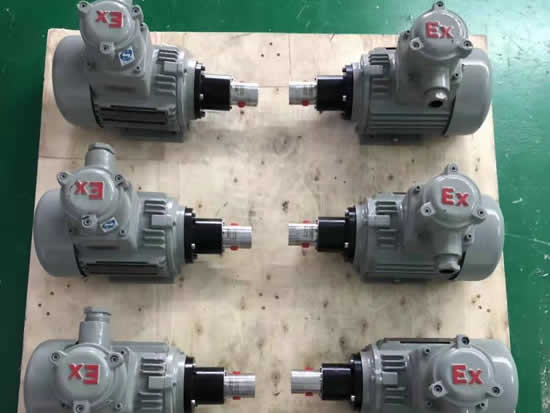

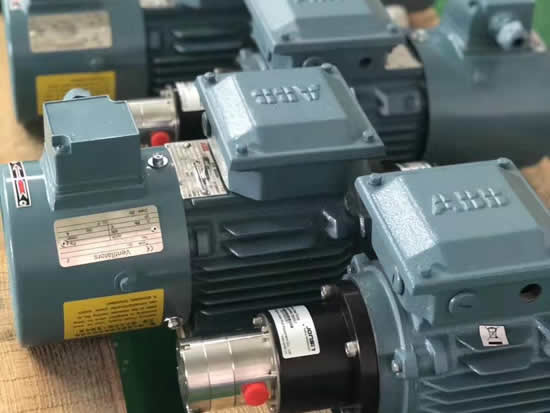

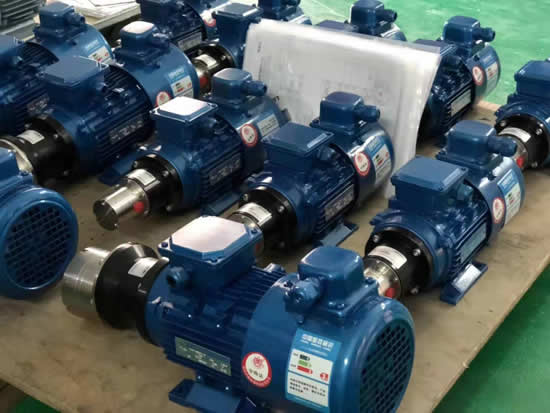

Drive:AC 220V / 380V, DC 24V, servo, frequency, explosion-proof motor
Caliber:G1/8、G1/4、G1/2、G1。
non-standard custom

【Pump material】

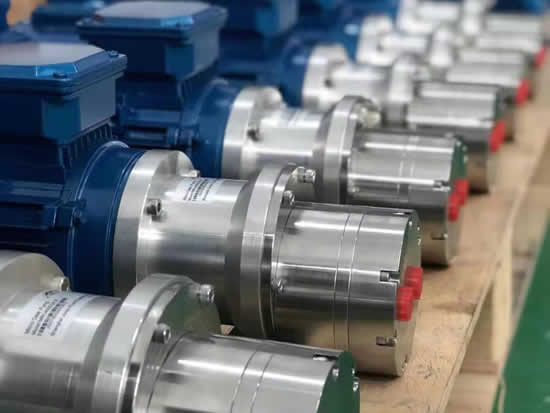

Pumps: 316SS, PPS,
Gear: PEEK, PTFE, PPS, Carbide
Bearings: graphite, PEEK, PPS, ceramic, PTFE
Sealing: PTFE, FKM, EPDM
