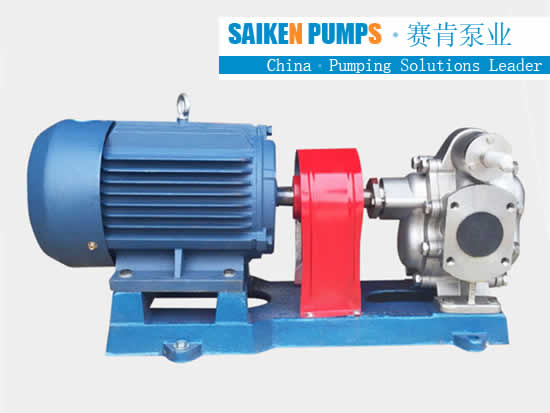

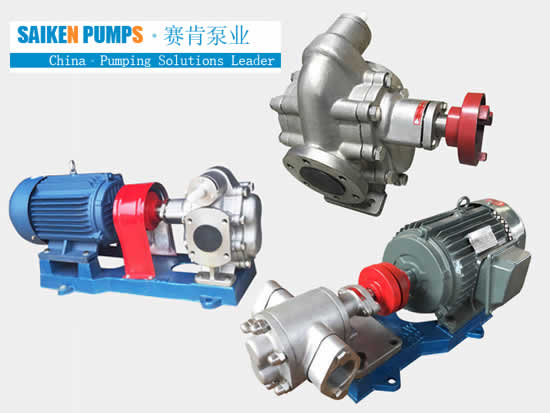

Stainless Steel Gear Pump - KCB Series

item no.:
KCB18.3/55/83.3/200/300/483.3/633/960/1600/5400
lead time:
Customer Date
product orgin:
CHINA SAIKEN PUMPS
shipping port:
Tianjin China
payment:
T/T OR L/C
color:
Customer Color

contact now

description

KCB Stainless Steel Rotary Gear Pump Q max to 570mm³/h, P max to 0.6 Mpa, caliber max 14 inch, gear oil pump, max temp 200 degree, viscosity range 5 to 1000cst.

Typical application of KCB pump on board ship or vessel are supply of F.O., M.O., L.O., diesel oil, or even petrol, benzene transfer and supply and so on. Similar model 2CY gear oil marine pump can be also supplied.

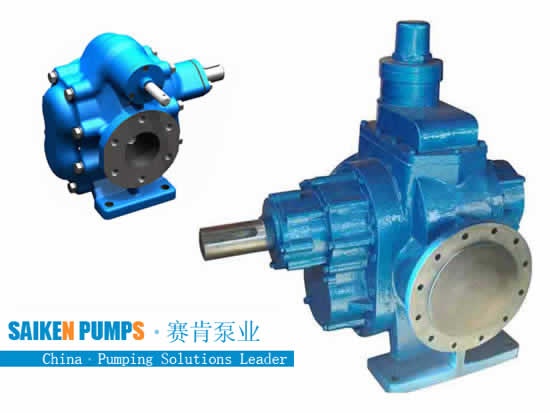

KCB gear pump overview:

1. Coupled gear set with high quality carbon steel (2Cr 13 carbon steel as standard). Stainless steel or bronze material gear is available.

2. Each gear is fitted on a shaft supported by two internal quality bearings immersed in the pumped liquid. Small size in sliding bearing, to model KCB-83.3/0.33, big size in rolling bearing, from model KCB-135/0.33. There are no external bearings.

3. Pump has only one shaft penetration(the drive gear side) through the housing sealed with a mechanical seal. Soft packing seal is available.

4. Pumps are driven with electric motors through elastic coupling or spacer coupling.

5. With built-in relief valve, setting value 1.5 times of discharge pressure, to protect pump and pipe system.

6. Positive type pump, good self-priming function, suction head about 4 meter.

7. Self-lubrication, no need extra lub. oil or grease.

8. Both screw port, small size, to model KCB-83.3/0.33. Flange port, KCB-135/0.33, from model KCB-135/0.33.

Technical details:

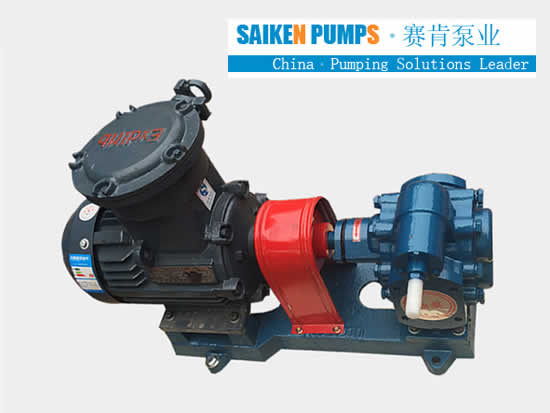

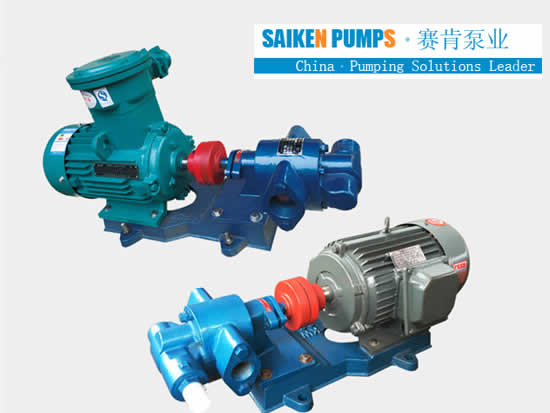

–Motor: 4 or 6 pole quality IEC motor configurations, with high level class(class F or higher) and insulation(insulation IP44 or higher), in both 50Hz or 60Hz, Y-H series, suitable for marine purpose, explosion-proof motor is an optional, Starting in direct type(small power) or Star-delta type.

–Material: pump casing and cover: cast iron, pump gear couples: 40Cr stainless steel, shaft: carbon steel #45, (optional material in stainless steel or bronze)

–Shaft seal: mechanical seal, material SIC(silicon carbide)/hard alloy, (optional for double face mechanical seal, soft packing and rubber oil seal)

–Coupling: elastic coupling type, material in carbon steel

–Bearing: motor side, two enclosed antifriction bearing, lubricated by grease; pump side, two internal quality bearings immersed in the pumped liquid

–Self-priming: positive displacement pump, suction head about 4-5 meters

–Relief valve: internal relief valve insides, setting pressure 1.5 times of discharge pressure.

KCB Gear Pump Model Parameters:

Model	Capacity Q		Speed r/min	Exhaust Pressure Mpa	(NPSH)r m	Efficiency η %	Motor
	m3/h	L/min					Power kw	Model
KCB-18.3	1.1	18.3	1400	1.45	5	44	1.5	Y90L-4
2CY-1.1/1.45
KCB-33.3	2	33.3	1420	1.45	5	44	2.2	Y100L1-4
2CY-2/1.45
KCB-55	3.3	55	1400	0.33	7	41	1.5	Y90L-4
2CY-3.3/0.33
KCB-83.3	5	83.3	1420	0.33	7	43	2.2	Y100L1-4
2CY-5/0.33
KCB-135	8	135	940	0.33	5	46	2.2	Y112M-6
2CY-8/0.33
KCB-200	12	200	1440	0.33	5	46	4	Y112M-4
2CY-12/0.33
KCB-300	18	300	960	0.36	5	42	5.5	Y132M2-6
2CY-18/0.36
KCB-483.3	29	483.3	1440	0.36	5.5	42	11	Y160M-4
2CY-29/0.36
KCB-633	38	633	970	0.28	6	43	11	Y160L-6
2CY-38/0.28
KCB-960	58	960	1470	0.28	6.5	43	18.5	Y180M-4
2CY-58/0.28
KCB-1200	72	1200	740	0.6	7	43	37	Y280S-8
KCB-1600	95	1600	980				45	Y280S-6
KCB-1800	112	1800	740	0.6	7.5	43	55	Y315S-8
KCB-2500	150	2500	985				75	Y315S-6
KCB-2850	170	2850	740	0.6	8	44	90	Y315L1-8
KCB-3800	230	3800	989				110	Y315L1-6
KCB-4100	245	4100	743	0.6	8	44	132	Y355M1-8
KCB-5400	325	5400	989				160	Y355M1-6
KCB-5600	330	5600	744	0.6	8	44	160	Y355M2-8
KCB-7600	460	7600	989				200	Y355M3-6
KCB-7000	420	7000	744	0.6	8	44	185	Y355L1-8
KCB-9600	570	9600	989				250	Y355L2-6
