Magnetic Drive Pump 5hp in GFRPP PVDF

  • item no.:

    GFRPPPVDFPP

  • lead time:

    Customer Date

  • product orgin:

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description

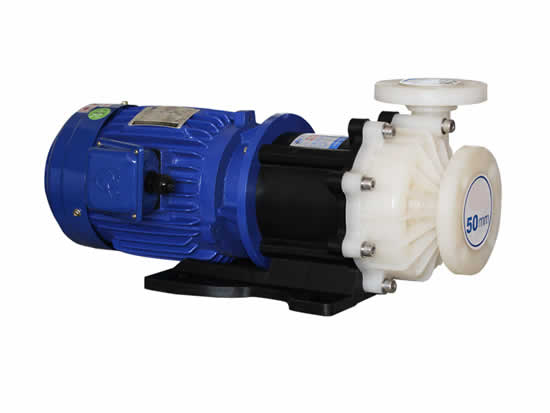

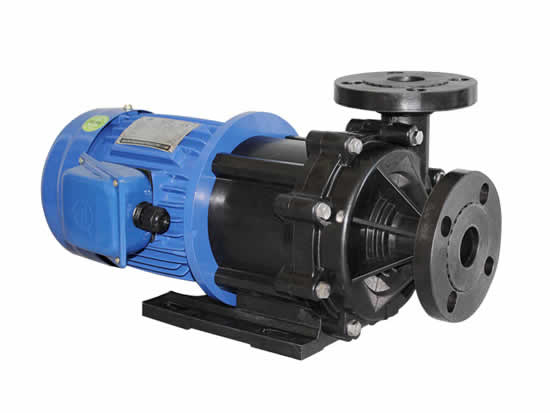

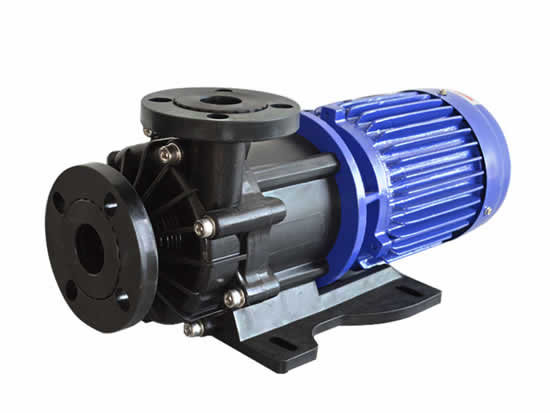

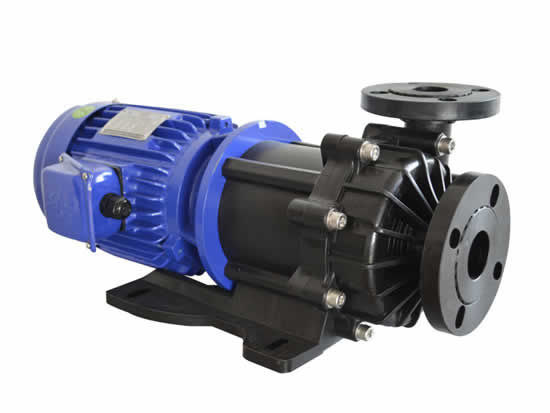

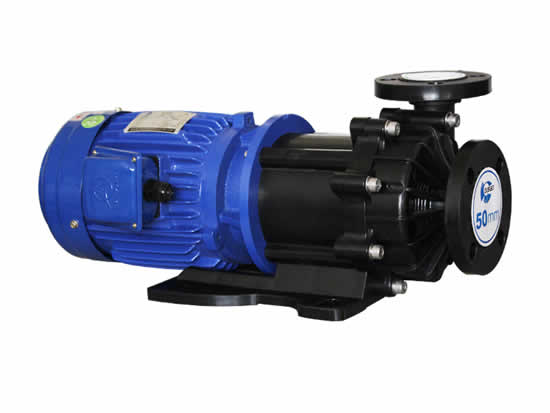

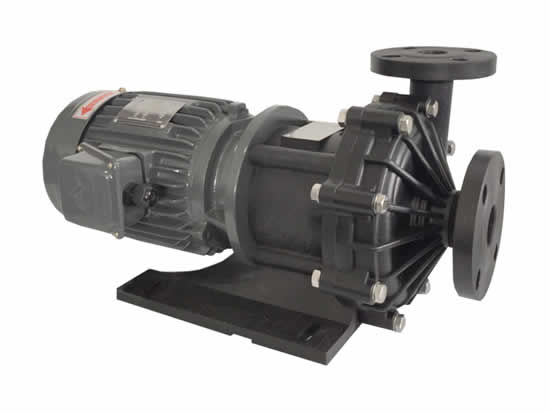

Magnetic Drive Pump 5hp in GFRPP PVDF

Materials in contact with the liquid: casing and impeller GFRPP/PVDF/Polypropylene;
o-ring EPDM (standard for PP pumps) VITON (standard for PVDF pumps);
Static shaft: Al2O3 98%;
rotating bushing PTFEC;
High torque magnetic coupling NeFeBo standard;
Flow up to 120 m3/h; pressure up to 45 mlc;
Max temperature: PP 70°C – PVDF 90°C;
Max viscosity: 250 cSt;
Pressure rating NP 6 at 20°C.
Flow 1200LPM; Head 26 mlc;
Port size: 2.5"
Max viscosity: 200 cSt;
Voltage: 3Phase 220V/380V/415V

DESCRIPTION:
Magnetic drive centrifugal pumps series GFRPP/PVDF are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids. Thanks to the innovative mag drive system, pumps model PP/PVDF reduce the risks of losses and the maintenance costs. The transmission of the motion occurs through magnetic joints without using mechanical seals. This guarantees the maximum safety and efficiency. The pumped liquid has to be clean and without solids in suspension.

PP/PVDF Magnetic drive pumps have a particular sealless design that is suitable to pump corrosive and dangerous liquids thanks to the high chemical resistance and absence of leakage and emissions. The structure is really simple so that the pump requires a very reduced maintenance with consequent save in terms of repairing and spare parts costs during the pump life. The external magnet placed on the drive shaft transmits the motion to the internal magnet connected to the impeller which rotates and moves the fluid through the pump.

Typical applications:
High corrosive liquids
Toxic, noxious and carcinogenic liquids.

If you need more information, please contact us by email：Annie@saikenpumps.com
