High Temperature Resistant Centrifugal Pump Installer

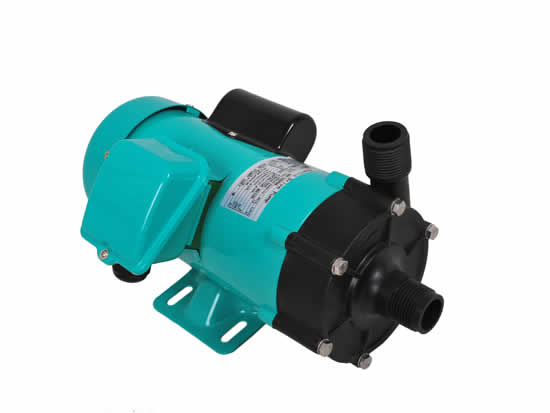

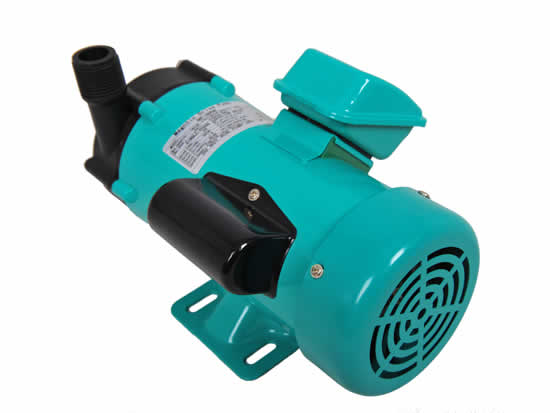

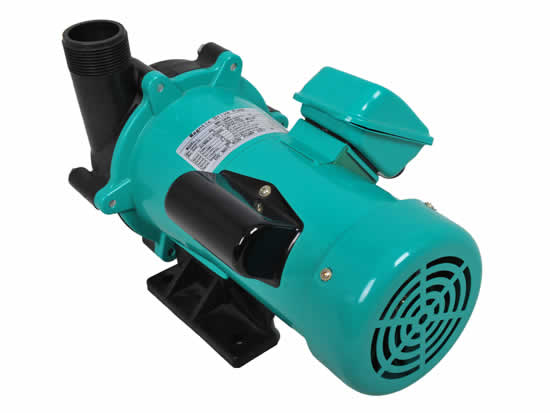

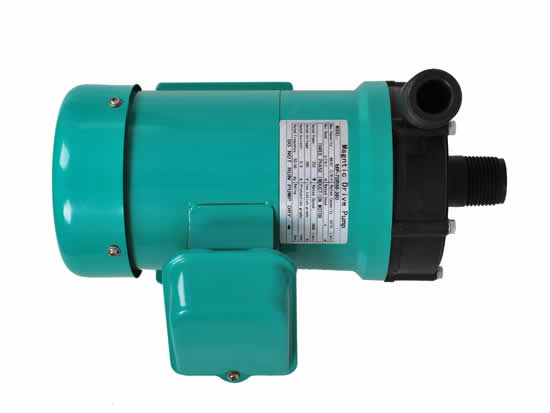

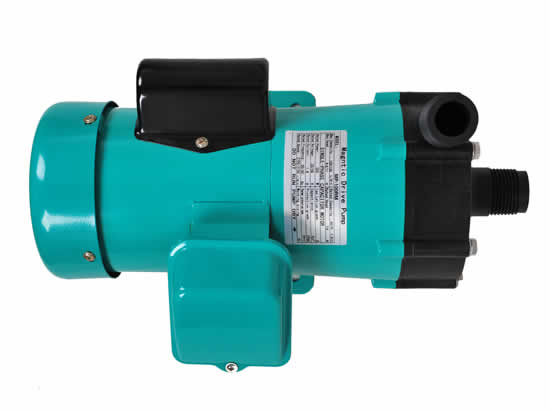

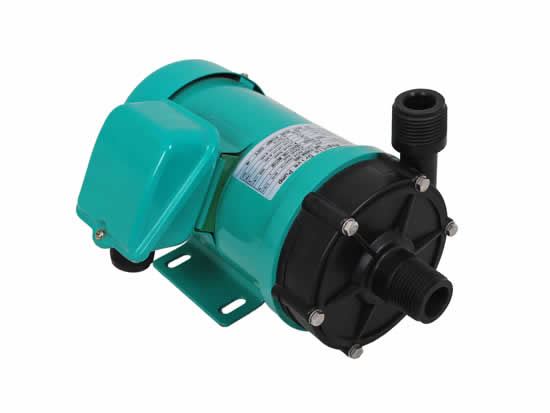

Miniature Magnetically Driven Acid Pump

  • item no.:

  • lead time:

    Customer Date
  • product orgin:

  • shipping port:

    Tianjin China
  • payment:

    L/C Or T/T
  • color:

    Customer Color
  • description
non-shaft seal corrosion-resistant small magnetic drive pump is suitable for the transportation of all kinds of chemical acid and base liquids without leakage. Suitable for 0-90 degrees Celsius, configuration and selection according to different liquids.

Mag drive pump main parameters:


Flow : 8L/MIN-220L/MIN
Head: 1 m - 12 m
Power:6W-370W
Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc.
Operating temperature: 0 ºC to 90 ºC medium density: Less then 1.3
Pump housing material:F-FRPP/P-PVDF
Interface method:M-Thread joint
Pump shaft material:Ceramic, silicon carbide-SIC
Rubber material:V-Viton/E-EPDM/N-NBR
Frequency:5-50HZ/6-60HZ


Miniature Magnetically Driven Acid Pump Data Sheet:


       Type   In- Outlet(Inch)  Power           50HZ           60HZ Weight(kg)
Max Head(m) Max Flow(l/min)  Max Head(m) Max Flow(l/min)
   SKM-10R  14*14   6    1.5      11    2.1    12   3
   SKM-15R(M)       14*14   10    2.7      16    3.4    19   3
   SKM-20R(M)       3/4"   20    3.1      27    4.3    32   3.73
   SKM-30R(M)       3/4"   45    3.5   30     5    37   5
   SKM-40R(M)       3/4"   65    4.2       43    6.3    50   5
   SKM-55R(M)       1"   120    5.6      60    8.2    70   9
   SKM-70R(M)       1"   180    10      90    12    110   9
   SKM-100R(M)       1"   250    12.5      120    14    120   10
