Differences between lobe pumps

There are many differences between lobe pumps and gear pumps: 1. Volume: Due to its compact design, the lobe lobe pump requires a small footprint. No additional space is required to service the pump. Standard flange, diameter can be adjuste...

1-HP-PVDF-Self-Priming-Pump 1-HP-PVDF-Self-Priming-Pump 1-HP-PVDF-Self-Priming-Pump 1-HP-PVDF-Self-Priming-Pump

1HP PVDF Self-Priming Pump

  • item no.:

  • lead time:

    Customer Date

  • product orgin:

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description
Product Details

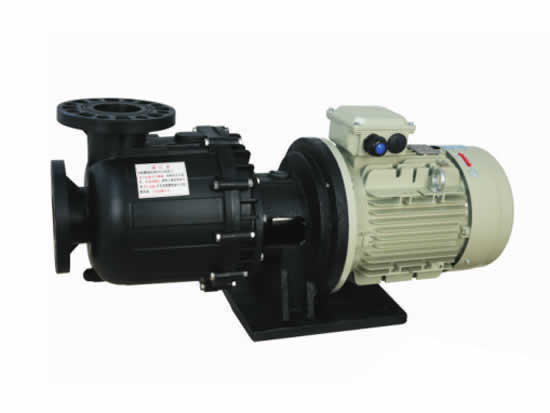

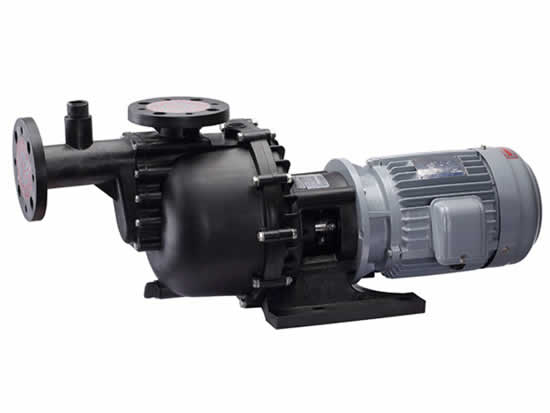

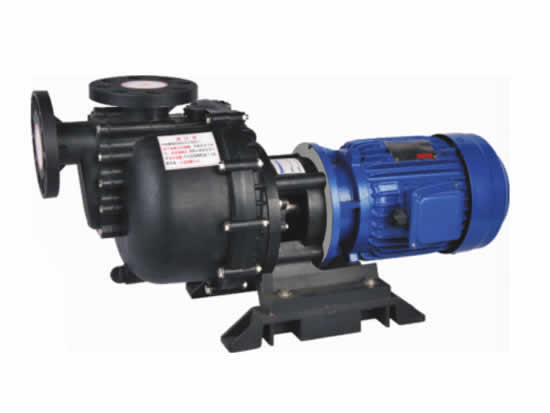

PVDF Self-Priming Pump

Special self-priming design, strong self-priming, self-priming up to 20ft
The head can reach 40 meters, and the flow rate is 1000L/min
Choose different plastics according to the chemical nature of the transfer liquid, including GFRPP, PVDF, CPVC, polypropylene, PP
Maximum liquid temperature: GFRPP/PP 80 degrees Celsius, PVDF 90 degrees Celsius
The motor made of stainless steel 316 is connected to the standard motor along the long axis, and a Teflon sleeve is sleeved on the axis. There will be no contact between the axis assembly and the pumped chemical solvent or liquid.
The shaft seal is cooled by pumping liquid, and the shaft seal is always immersed in the liquid, so when the pump stops, crystals around the shaft seal will not form!
Pump inlet and outlet and specifications have 1-1/2" 2" 3" and other flange joints
High efficiency, low cost, no leakage, easy to maintain
Good corrosion resistance
Independent thrust bearing for maximum reliability
Liquid specific gravity up to 1.8


SKB self-priming pump parameter introduction：


Model
Curve
 Size(mm)

Power(HP)

Phase
    Number
Of poles
Total Flow
(L/min)
Total Head
(m)
Weight
（Kg）
50/60hz Inlet/outlet 50/60hz 50/60hz
SKB-40011L a / A 40/40 1/2 1 2 185/200 7/7.5 27
SKB-40013L a / A 40/40 1/2 3 2 185/200 7/7.5 27
SKB-40012H b / B 40/40 1 3 2 220/240 13/16 26
SKB-40014L c / C 40/40 1 3 4 210/270 7/9 29
SKB-40022L d / D 40/40 2 3 2 280/300 17/18 30
SKB-40022H e / E 40/40 2 3 2 300/330 19/22 34
SKB-50032L f / F 50/50 3 3 2 410/430 17/21 38
SKB-50052H g / G 50/50 3 3 2 390/480 23/29 42
SKB-50052H h / H 50/50 5 3 2 450/600 26/34 85
SKB-75052H i / I 75/75 5 3 2 850/860 26/35 95
SKB-75072H j / J 75/75 7.5 3 2 900/960 29/35 100
SKB-75102H k / K 75/75 10 3 2 980/1000 29/40 110



SKB self-priming pump appearance size drawing

model A B C D E F G H I J N
SKB-40011L 655 130 375 300 241.5 275 320 260 214 299 12
SKB-40013L 655 130 375 300 241.5 275 320 260 214 299 12
SKB-40012L 686 130 375 300 241.5 275 320 260 214 314.5 12
SKB-40014L 655 130 375 300 241.5 275 320 260 214 299 12
SKB-40022L 686 130 375 300 241.5 275 320 260 214 314.5 12
SKB-40022H 686 130 375 300 241.5 275 320 260 214 314.5 12
SKB-50032L 740.5 130 375 300 241.5 275 320 260 214 322.5 12
SKB-50032H 740.5 130 375 300 241.5 275 320 260 214 322.5 12
SKB-50052H 725.5 130 375 300 241.5 275 320 260 214 306.5 12
SKB-70052H 767 110 381 201 282.5 275 320 260 214 306.5 12

PVDF Self-Priming Pump





If you need more information, please contact us by email!


tags :
Request a free quote

  • subject :

    1HP PVDF Self-Priming Pump

    • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

related products
  • 1HP PVDF Self-Priming Pump

    1HP Plastic self-priming pump,The head can reach 40 meters, and the flow rate is 1000L/min,Pump inlet and outlet and specifications have 1-1/2" 2" 3" and other flange joints...

  • 2HP SKB type Plastic self-primi

    Product Details Excellent corrosion resistance: 2HP Plastic self-priming pump,The material of the flow end is CFRPP FRPP CPVC PVDF (Teflon) respectively,Both have excellent corrosion resistance and can be used to transport most chemical liquids includ...

  • PVDF FRPP acid and alkali resis

    PVDF FRPP acid and alkali resistant self-priming pump,Choose different plastics according to the chemical nature of the transfer liquid, including GFRPP, PVDF, CPVC, polypropylene, PP...

  • SUS304 316 Magnetic Drive Pump

    SUS304 316 magnetic Drive pump is abbreviated as SS magnetic Drive pump in china. The flow parts are made of 304, 316L and other high-quality stainless steel materials...

  • CQB SS Magnetic Driver Centrifu

    CQ、CQB、CQB-G、CQB-F、ZCQ Series Magnetic Driver Centrifugal Pump heavy type stainless steel Magnetic Driven Centrifugal Pump Factory prices come from China...

  • Factory direct CQ SUS316L magne

    CQ type Stainless steel magnetic pump, SS chemical magnetic pump,Stainless steel corrosion resistant magnetic pump,The wetted part is made of stainless steel such as SS304 and SS316/SS316L...

  • IH IS stainless steel lye centr

    IH IS stainless steel centrifugal pump is a single stage and suction cantilever horizontal centrifugal pump.All wetted parts cast iron, carbon steel stainless steel 316L or 304, Stainless steel centrifugal pump manufacturer from china...

  • 1hp Chemical Anticorrosion Magn

    Polypropylene Magnetic drive Pumps have become a standard for applications requiring corrosion resistant pumps, ideal for chemical recirculation and chemical transfer...

  • 0.5HP Commercial Acid Proof Sew

    0.5HP Commercial Acid Proof Sewage Pumps Magnetic Driven Pump Product Characterist use magnetic drive no shaft seal design pump body fully sealed. use GFRPP and PVDF material injection molding suitable for most chemical acid liquid....

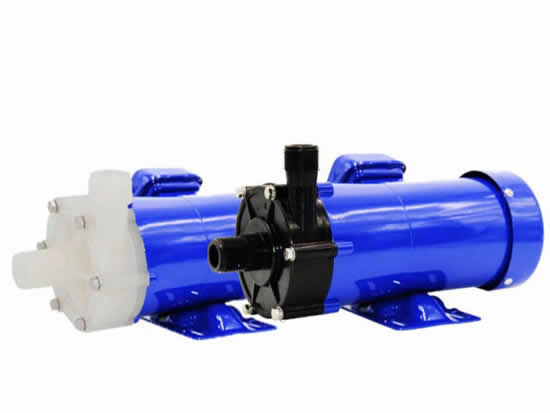

  • Circulating magnetic plastic no
