Differences between lobe pumps

There are many differences between lobe pumps and gear pumps: 1. Volume: Due to its compact design, the lobe lobe pump requires a small footprint. No additional space is required to service the pump. Standard flange, diameter can be adjuste...

PVDF-FRPP-acid-and-alkali-resistant-self-priming-pump PVDF-FRPP-acid-and-alkali-resistant-self-priming-pump PVDF-FRPP-acid-and-alkali-resistant-self-priming-pump PVDF-FRPP-acid-and-alkali-resistant-self-priming-pump

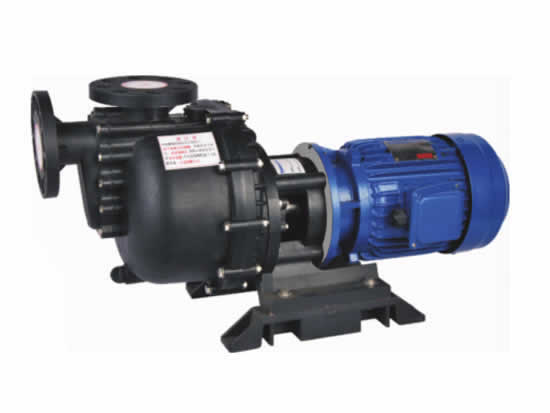

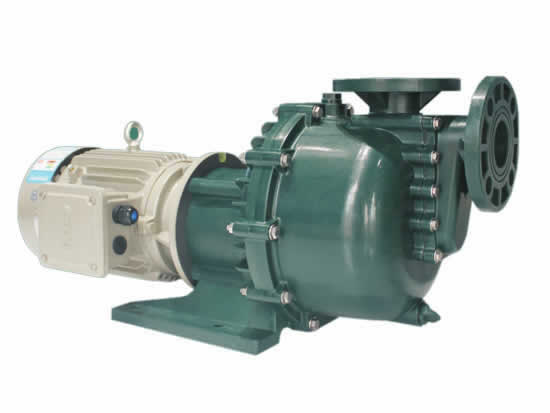

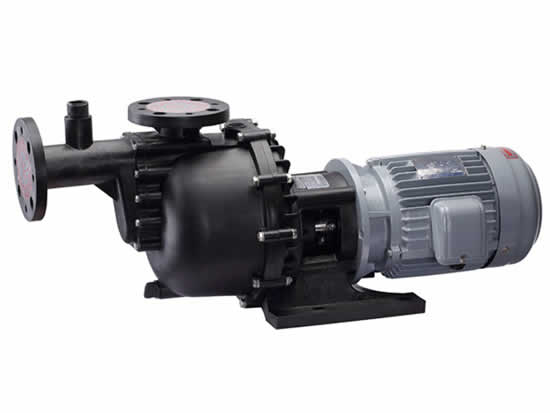

PVDF FRPP acid and alkali resistant self-priming pump

  • item no.:

  • lead time:

    Customer Date

  • product orgin:

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description
SKB type Plastic self-priming pump Model data sheet：

SKB  -  50  -   03   -   2   -   N  -   B   -   H-   C   -   S     -   H    -   5   -   L

 ①      ②      ③       ④      ⑤      ⑥      ⑦   ⑧      ⑨       ⑩       ⑪      ⑫

①Type/pump material ：SKB-FRPP SKBC-CFRPP SKBA-CPVC SKBP-PVDF
②Pump inlet and outlet diameter：40-40*40 50-50*50 75-75*75
③Hp：11-1Ø1/2HP、13-3Ø1/2HP、02-3Ø2HP、03-3Ø3HP、05-3Ø5HP、07-3Ø7.5HP、10-3Ø10HP
④stage：2-2P 4-4P
⑤Rubber Material：N-NBR E-EPDM V-VITON
⑥B-No tongue check valve，A-Tongue check valve
⑦L-low head，H-high head
⑧fixing ring ：C-Ceramic（Ceramics）S-SIC SS-SSIC
⑨turn ring：C-Carbon（carbon）S-SIC SS-SSIC
⑩Spring material：H-Hasteiioy S-SUS316
⑪frequency 5-50Hz 6-60Hz
⑫S-Short neck L- Long neck



Product Details
PVDF Self-Priming Pump

Special self-priming design, strong self-priming, self-priming up to 20ft
The head can reach 40 meters, and the flow rate is 1000L/min
Choose different plastics according to the chemical nature of the transfer liquid, including GFRPP, PVDF, CPVC, polypropylene, PP
Maximum liquid temperature: GFRPP/PP 80 degrees Celsius, PVDF 90 degrees Celsius
The motor made of stainless steel 316 is connected to the standard motor along the long axis, and a Teflon sleeve is sleeved on the axis.
There will be no contact between the axis assembly and the pumped chemical solvent or liquid.
The shaft seal is cooled by pumping liquid, and the shaft seal is always immersed in the liquid, so when the pump stops,
crystals around the shaft seal will not form!
Pump inlet and outlet and specifications have 1-1/2" 2" 3" and other flange joints
High efficiency, low cost, no leakage, easy to maintain
Good corrosion resistance
Independent thrust bearing for maximum reliability
Liquid specific gravity up to 1.8

PVDF-FRPP-acid-and-alkali-resistant-self-priming-pump


SKB type PP self-priming pump Model:



Model
Curve

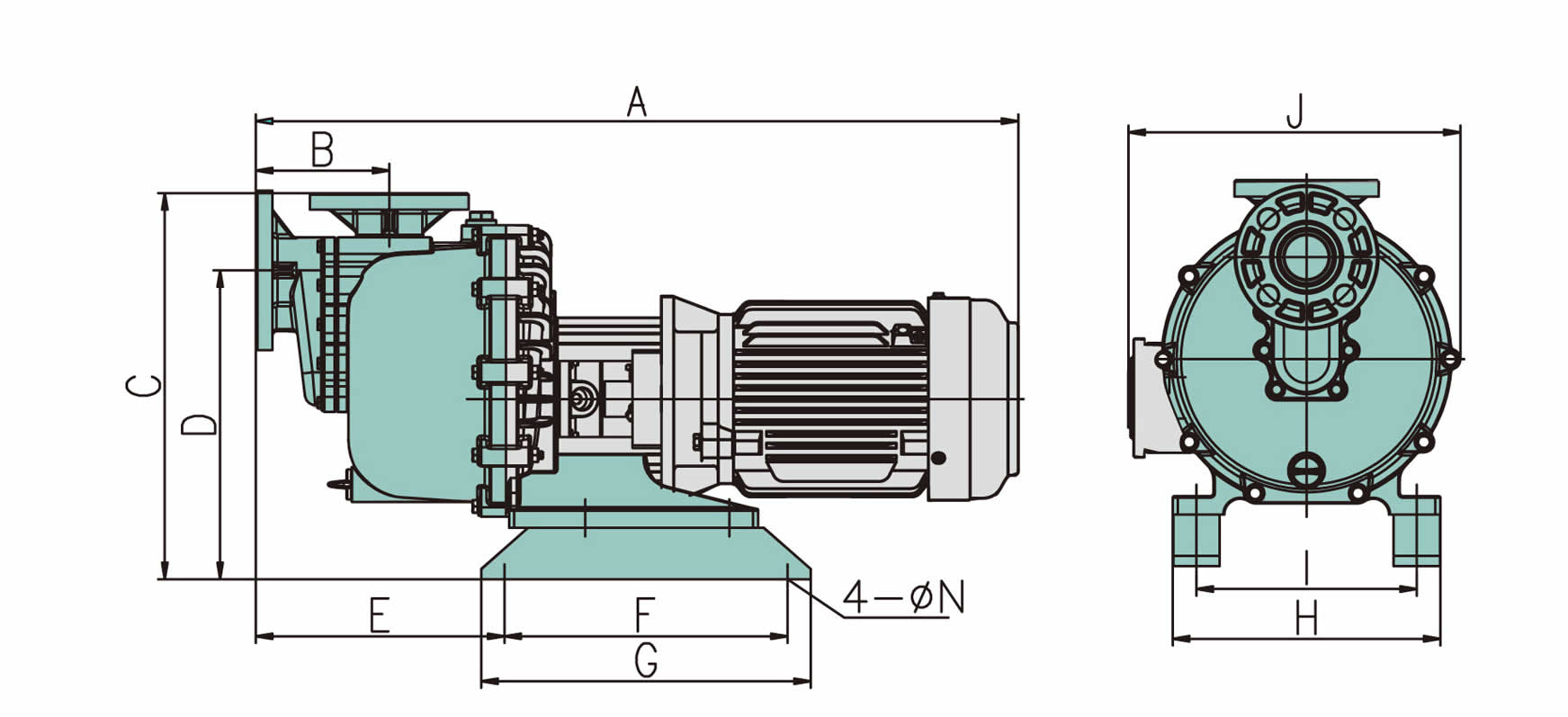

 Size(mm)

Power(HP)

Phase
    Number
Of poles
Total Flow
(L/min)
Total Head
(m)
Weight
（Kg）
50/60hz Inlet/outlet 50/60hz 50/60hz
SKB-40011L a / A 40/40 1/2 1 2 185/200 7/7.5 27
SKB-40013L a / A 40/40 1/2 3 2 185/200 7/7.5 27
SKB-40012H b / B 40/40 1 3 2 220/240 13/16 26
SKB-40014L c / C 40/40 1 3 4 210/270 7/9 29
SKB-40022L d / D 40/40 2 3 2 280/300 17/18 30
SKB-40022H e / E 40/40 2 3 2 300/330 19/22 34
SKB-50032L f / F 50/50 3 3 2 410/430 17/21 38
SKB-50052H g / G 50/50 3 3 2 390/480 23/29 42
SKB-50052H h / H 50/50 5 3 2 450/600 26/34 85
SKB-75052H i / I 75/75 5 3 2 850/860 26/35 95
SKB-75072H j / J 75/75 7.5 3 2 900/960 29/35 100
SKB-75102H k / K 75/75 10 3 2 980/1000 29/40 110



If you need more information, please contact us by email!
