2HP-SKB-type-Plastic-self-priming-pump 2HP-SKB-type-Plastic-self-priming-pump 2HP-SKB-type-Plastic-self-priming-pump 2HP-SKB-type-Plastic-self-priming-pump

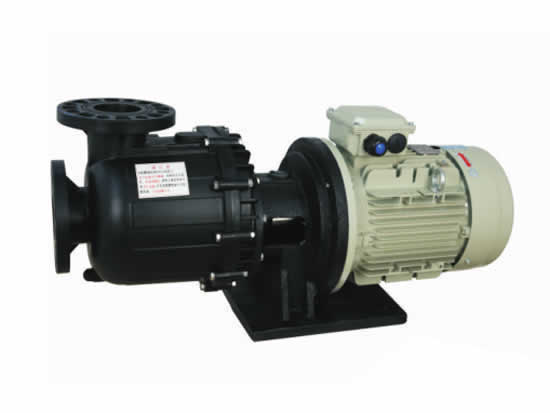

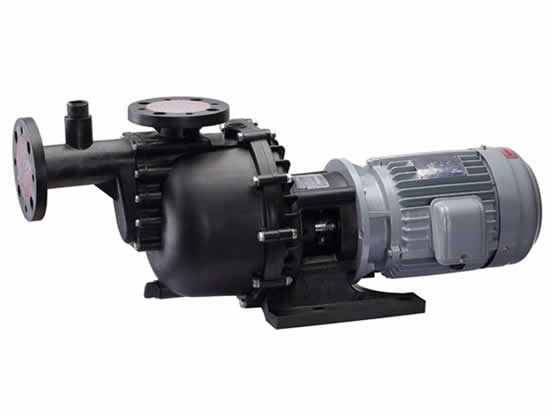

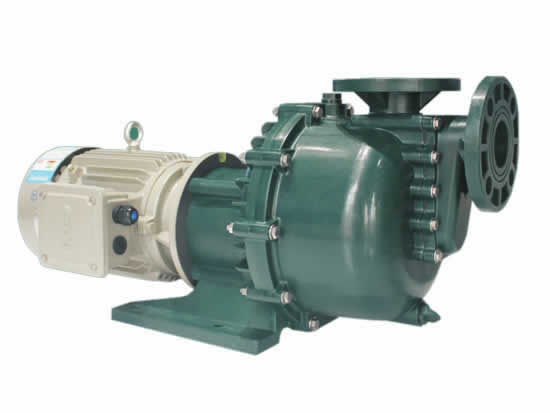

2HP SKB type Plastic self-priming pump

  • item no.:

  • lead time:

    Customer Date

  • product orgin:

  • shipping port:

    Tianjin China

  • payment:

    L/C Or T/T

  • color:

    Customer Color
contact now
  • description
Product Details

Excellent corrosion resistance: The material of the flow end is CFRPP FRPP CPVC PVDF (Teflon), respectively. Both have excellent corrosion resistance and can be used to transport most chemical liquids including strong acid and alkali.

1. Specially designed cooling for shaft seal. The built-in Teflon bellow seal features automatic cooling performance without use of circulated cooling hose.

2. Vacuum self priming design. Extremely powerful self priming force. Built with a choke valve fully prevents liquid back-flow in the pump.

3. Superior corrosion-resistant performance. Material - CFRPP FRPP CPVC PVDF (Teflon.)

4. To prevent foreign matter from suction, foot valve should be installed in the inlet. To prevent from immediate backflow, check valve should be installed in the outlet. Backflow results in pump’s body damage and dry-running also damages to the pump.

5. Depending on customers’ needs, cooling circulated tube can be assembled. The liquid inside of pump circulates and cools down the shaft seal the when dry-running.



SKB type Plastic self-priming pump Model data sheet：

SKB  -  50  -   03   -   2   -   N  -   B   -   H-   C   -   S     -   H    -   5   -   L

 ①      ②      ③       ④      ⑤      ⑥      ⑦   ⑧      ⑨       ⑩       ⑪      ⑫

①Type/pump material ：SKB-FRPP SKBC-CFRPP SKBA-CPVC SKBP-PVDF
②Pump inlet and outlet diameter：40-40*40 50-50*50 75-75*75
③Hp：11-1Ø1/2HP、13-3Ø1/2HP、02-3Ø2HP、03-3Ø3HP、05-3Ø5HP、07-3Ø7.5HP、10-3Ø10HP
④stage：2-2P 4-4P
⑤Rubber Material：N-NBR E-EPDM V-VITON
⑥B-No tongue check valve，A-Tongue check valve
⑦L-low head，H-high head
⑧fixing ring ：C-Ceramic（Ceramics）S-SIC SS-SSIC
⑨turn ring：C-Carbon（carbon）S-SIC SS-SSIC
⑩Spring material：H-Hasteiioy S-SUS316
⑪frequency 5-50Hz 6-60Hz
⑫S-Short neck L- Long neck

2HP SKB type Plastic self-priming pump


SKB type PP self-priming pump Model:



Model
Curve
 Size(mm)

Power(HP)

Phase
    Number
Of poles
Total Flow
(L/min)
Total Head
(m)
Weight
（Kg）
50/60hz Inlet/outlet 50/60hz 50/60hz
SKB-40011L a / A 40/40 1/2 1 2 185/200 7/7.5 27
SKB-40013L a / A 40/40 1/2 3 2 185/200 7/7.5 27
SKB-40012H b / B 40/40 1 3 2 220/240 13/16 26
SKB-40014L c / C 40/40 1 3 4 210/270 7/9 29
SKB-40022L d / D 40/40 2 3 2 280/300 17/18 30
SKB-40022H e / E 40/40 2 3 2 300/330 19/22 34
SKB-50032L f / F 50/50 3 3 2 410/430 17/21 38
SKB-50052H g / G 50/50 3 3 2 390/480 23/29 42
SKB-50052H h / H 50/50 5 3 2 450/600 26/34 85
SKB-75052H i / I 75/75 5 3 2 850/860 26/35 95
SKB-75072H j / J 75/75 7.5 3 2 900/960 29/35 100
SKB-75102H k / K 75/75 10 3 2 980/1000 29/40 110


SKB PVDF Self-Priming Pump


If you need more information, please contact us by email!
